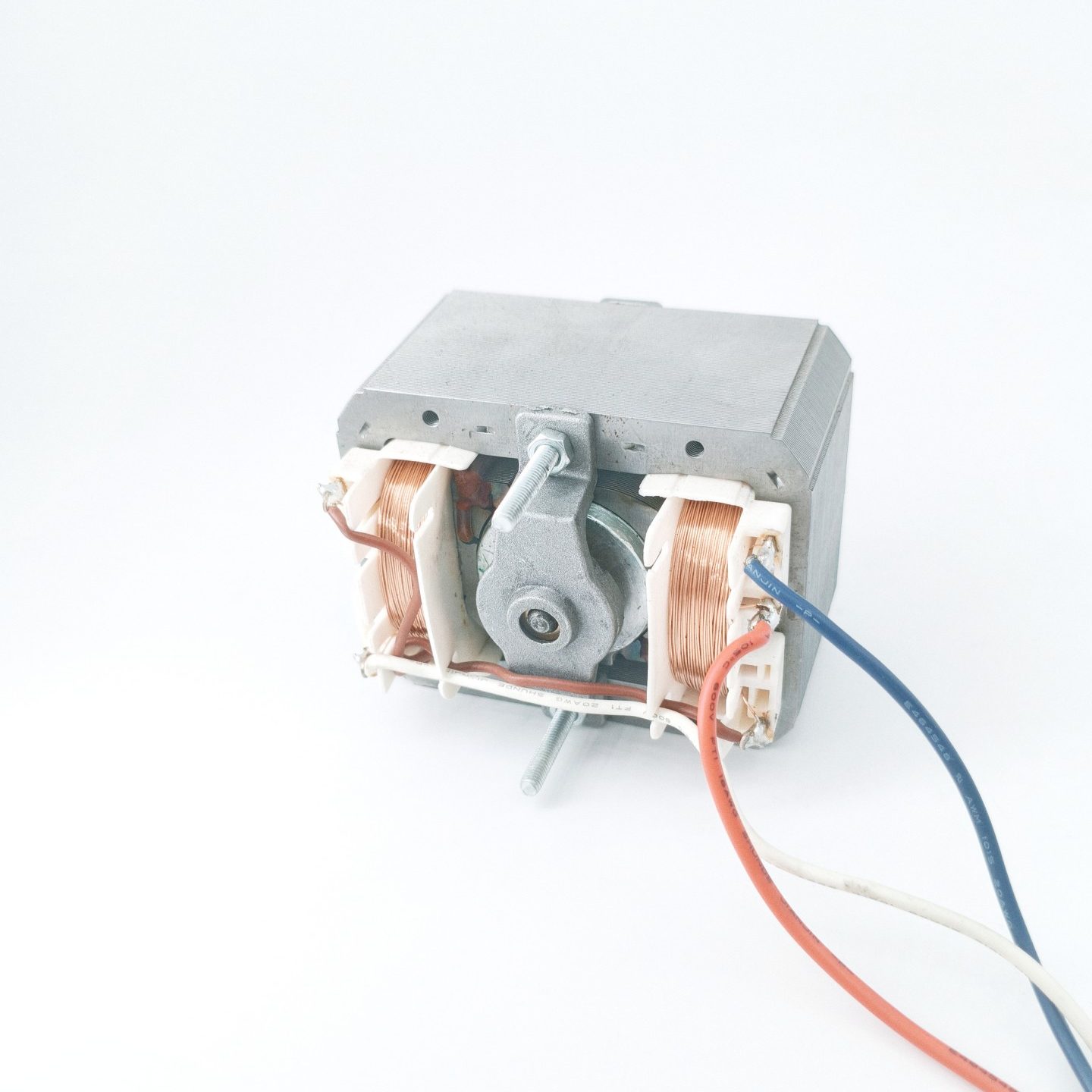

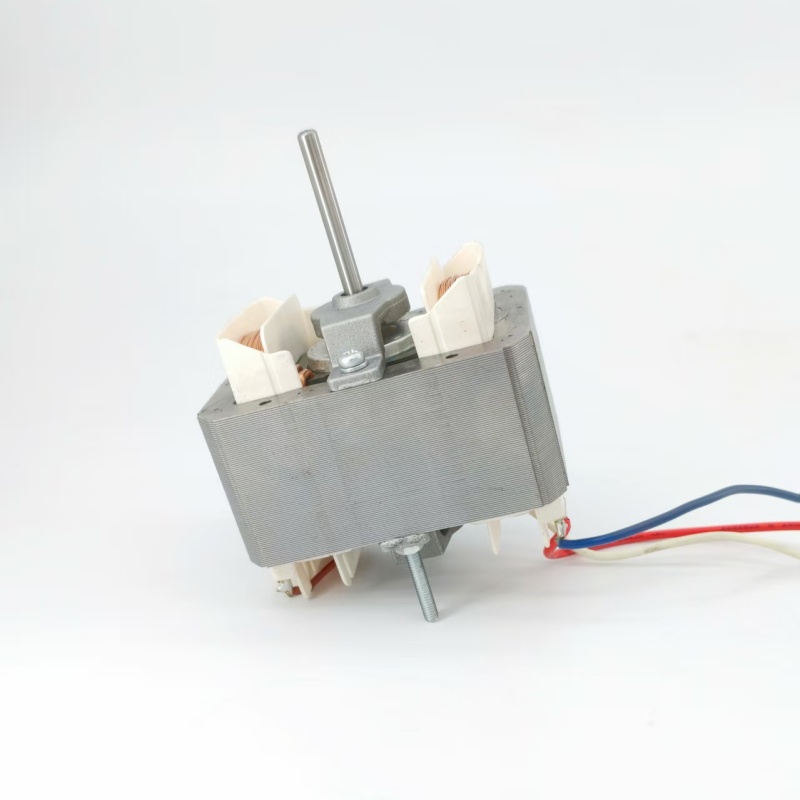

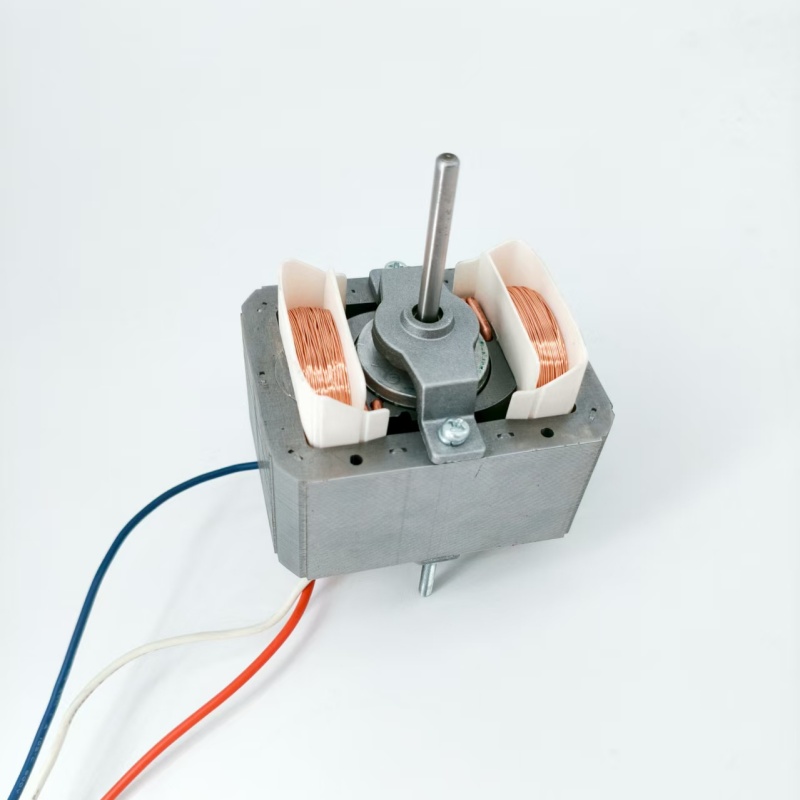

As the “power heart” of range hoods, our high-quality range hood motors have become the core support of clean kitchens with high-quality materials and excellent performance.

In terms of material selection, it demonstrates quality everywhere: the core winding uses 99.9% high-purity oxygen free copper wire, which has excellent conductivity and can reduce current loss, avoiding the impact of excessive heating on efficiency;
The stator is made of 35WW300 high permeability silicon steel sheet, which has high magnetic permeability and low iron loss, which can enhance the magnetic field strength and improve the motor power;

The shell is made of 1.2mm thick cold-rolled steel plate, which has undergone double-layer treatment of galvanizing and spray coating. It can withstand high temperatures of 200 ℃ and is resistant to oil and corrosion. Even if it is exposed to kitchen fumes for a long time, it is not easy to rust or deform;
The internal bearings are made of Japanese NSK double ball bearings, which have low wear resistance and can significantly extend their service life.
​
In terms of performance, it can be called a “smoke exhaust weapon”: with a rated power of 200-300W and a stable speed of 1400-1800r/min, it can generate a static pressure of up to 400Pa. Faced with the large amount of smoke generated instantly during stir frying, it can quickly form a strong negative pressure zone and absorb the oil fume within 10 seconds, eliminating the problem of “smoke leakage”;

At the same time, by optimizing the motor duct structure and bearing noise reduction design, the operating noise is controlled below 50 decibels, which is only equivalent to normal conversation sound, and cooking will not interfere with family rest or neighborhood life.
In addition, it meets the national first level energy efficiency standards, reducing copper and iron losses by 15% -20% compared to ordinary motors, and long-term use can save a lot of electricity costs.
​
In terms of application scenarios, it is widely applicable: in household kitchens, whether it is small Chinese style stir fry kitchens or large open kitchens, it can accurately match different sizes of range hoods to ensure smoke exhaust effectiveness;

Commercial scenarios such as small restaurants and kitchens in unit canteens can easily cope with the continuous oil fumes generated by high-frequency cooking due to their durability and strong power;
Even in high-end embedded range hoods, their compact structural design can perfectly integrate into the overall kitchen decoration, balancing practicality and aesthetics.

Before leaving the factory, each motor needs to undergo more than 10 strict inspections such as no-load testing, load testing, and noise detection. Free maintenance and after-sales service are also provided to ensure healthy cooking in various scenarios.
